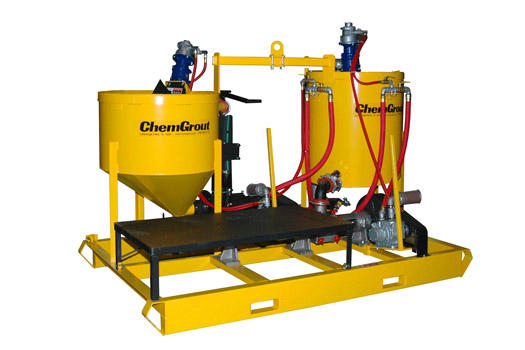

  • The CG-600 is a heavy duty, high volume colloidal grout plant featuring specially designed tanks and mixing pumps, that make mixing efficient and profitable.


  • 8 cubic foot or 13 cubic foot colloidal mixer
  • 13 cubic foot agitated storage tank

  • 2x3x6 high shear colloidal mix pump
  • Max Output: 20 GPM

Product Overview


The ChemGrout CG-600 progressive cavity pump is ideal for heavy construction projects such as dams and tunnels, as well as for precision post tension grouting. Part of ChemGrout’s Colloidal Series, the pump has a maximum output of 20 gpm (76 lpm) and a maximum pressure of 261 psi (18 bar). The unit thoroughly mixes with a high-speed mixing pump, discharges into a large 13 cu. ft. (370 litre) agitating holding tank and then delivers the material with its powerful cavity pump.
