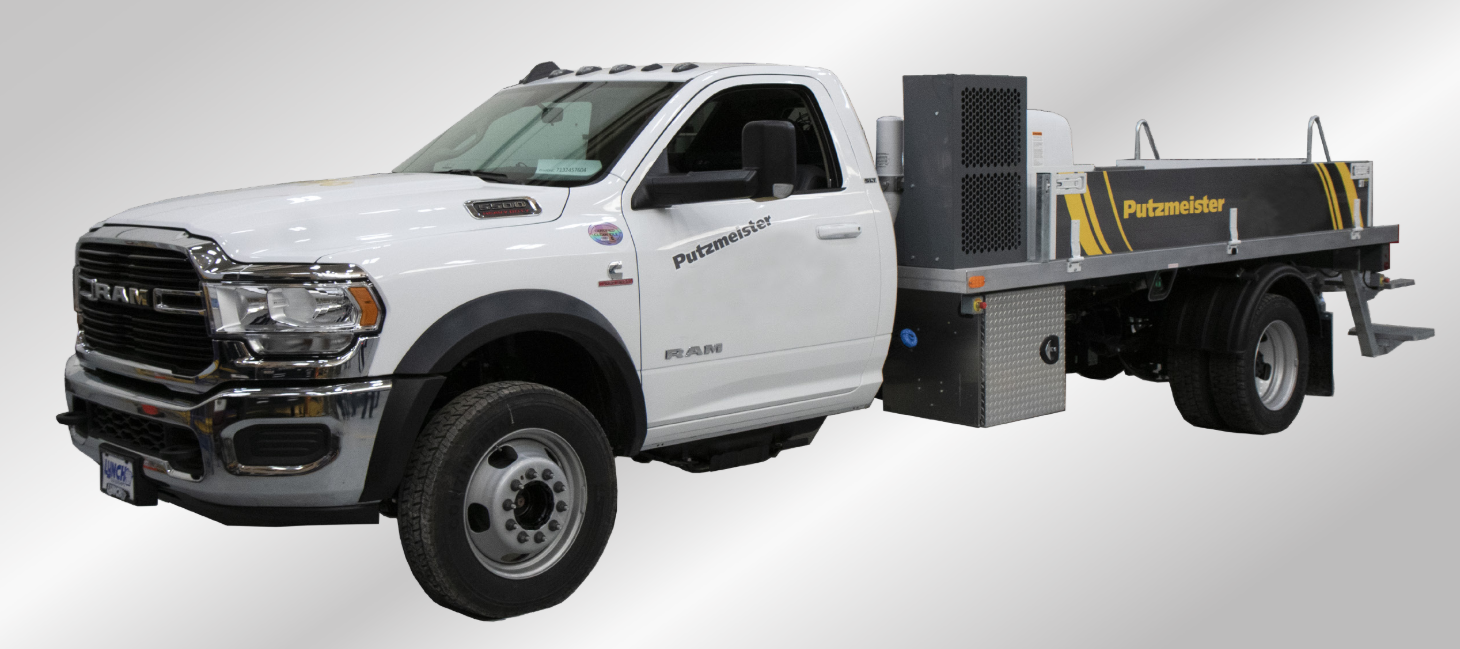

The VSP60 HP Vehicle Mounted Thom-Katt® Pump delivers the same high-level performance and output as the reliable Thom-Katt® series on a rugged flatbed-style chassis.
Features
- 3 chassis options to choose from – RAM, Kenworth, and Mack
General Information
| Output Volume | 56 yd³/hr; 43m³/hr |
| Output Pressure | 1,450 psi; 100 bar |
| Stokes Per Minute | 44 |
| Hydraulic Cylinder | 100 x 63 R mm |
| Delivery Cylinder | 150 x 1000 mm |
| S-tube | S1512 |
| Outlet | 5" HD |
| Hopper Capacity | 9' 6" ft³ ; 270 L |
| Hydraulic Tank | 45 gal; 170 L |
| Water Tank | 150 gal; 570 L |
| Chassis Options | Available on RAM 5500 4x4; Kenworth T280 4x2; Mack MD7 4x2 |
