Description
Brand: Putzmeister
Contact us for pricing
Class: Line Pumps

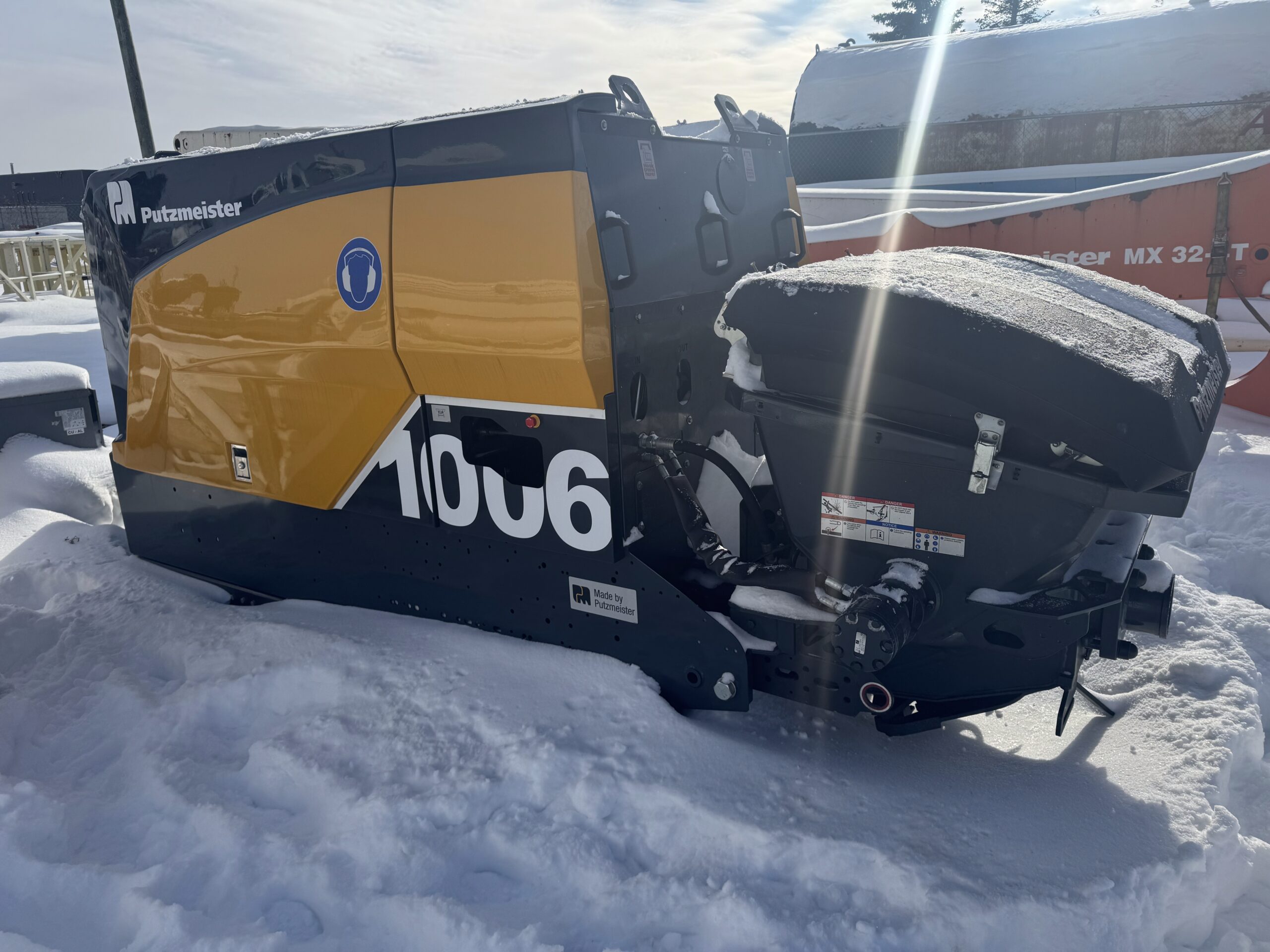

The Putzmeister Thomkatt TK 1006 E is the compact concrete pump in the 1000 series, equipped with an environmentally friendly electric motor and the latest Ergonic ® 3 PS control. With an Output of up to 73 yd³/h (56 m³/h) and a max. delivery pressure of 1230 psi (85 bar) it is the big brother to the TK 1004 E.
With the TK 1006 E, it is possible to deliver normal concrete with a grain size of up to 1.25″ (32 mm).
Pump Specifications
| Brand | Putzmeister |
| Model | TK1006e |
| Output | 56 m³/hr |
| Delivery Pressure | 85 bar |
| Max. Aggregate Size | 32 mm |
| Strokes | 36 |
| Engine | Electric |
| Engine Power | 55 kW |
| Material Cylinder Diameter-Stroke Length | 1000x180 mm |
| Hopper capacity | 300 l |
| Outlet Diameter | 125 mm |
| Length x Width x Height | 4750x1726x2130 mm |
| Weight | 3250 kg |
| Trailer Type | F8/F80 |
